Using Service Variables

Within the definition setup of a REST service, you can use REST specific variables.  These variables can be used in the REST definition such as urls, parameters, or headers.  To take them one step further, a REST variable value can be assigned to a Global Variable.

  • Navigate to Variables on the Rest Service Maintenance page.
    • Placeholder – Enter the name of the variable.  This is how the variable will be referenced later.
    • Description – Enter a description for the variable.
    • Type – Select System or Runtime.
    • Value – Enter a value for the variable.  This can be left blank.  Additionally, this can be set to a global variable which allows an integration to pass a global variable to the rest variable.
    • Required – Require a value to be entered for the variable on the connection setup.

Example uses for REST Variables

To reference a rest variable, enclose the Placeholder in double square brackets.

  • URLs – storename and apiversion are the placeholders defined in the variables section.

  • Parameters – searchquery is the placeholder defined in the variables section.

  • Headers – ctype is the placeholder defined in the variables section.

  • Setting value to a Global Variable – A global variable called GBL_CUSTOMERID can be set within an integration and its value can be passed into the rest definition variable.

Mappable REST Variables

Many times a rest service requires the endpoint to change for each requestAn example would be doing an update to a recordThe endpoint needs to have an id in it that changes for each recordWe can set a rest variable in the endpoint and then make the variable mappableThis means when the integration is ran, the endpoint will change for each record being processed.

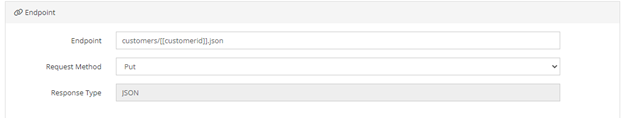

In the example here, [[customerid]] will dynamically change with mapped data from the source for each record.  To set a variable to mappable, navigate to a rest service destination and click on Variables.   Enable the mappable checkbox next to the variable.  Now when mapping to this destination, there will be an extra destination field with a Target Name that matches the variable’s Placeholder name.
