Setting up a Magento Connector

Published: Jul 11, 2023
‍If you’d rather watch a video of how this is completed, click here.
You will first need to upload the Magento Rest Service by following the below instructions:
  1. From the main Navigation Menu, select Maintenance and then REST Services.

rest services

  1. On the REST Services page, click the Import Rest Service button.

import button

  1. This opens the Import Rest Service window allowing you to upload the Json File linked here.

import pic

  1. After you have selected the file, you can press the process import button.
Now you can add the connector by following the below instructions:
  1. On the left side options column click Connections.
  2. On the Connections page click on the Create Connection button.

create connection

  1. On the New Connection page click on the Magento icon.

Magento

  1. The page to configure the Magento connection opens.

magento config

  1. Login to your Magento account with a user that has permissions to create an Integration
  1. Once logged in to Magento you will need to navigate to System > Extensions > Integrations
  2. Click “Add New Integration”
  3. Give the Integration a name and enter your password.
  4. Switch to the API tab and grant the Integration access to all resources needed for the integration.

5HJWgLf

  1. Click Save and Activate

vjEyzBV

  1. Click “Allow on the next screen to validate the security settings
  2. On the next screen, copy the “Access Token”

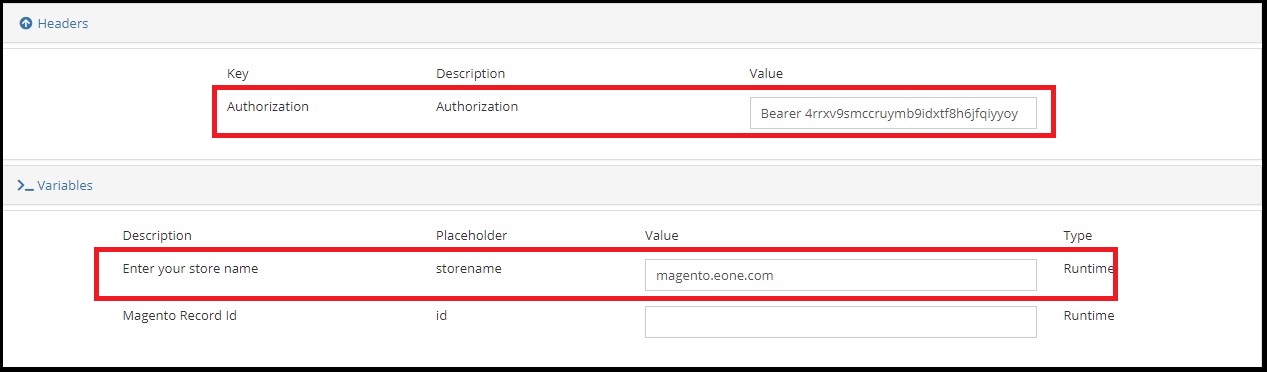

  3. Enter the token in the authorization header with this format “Bearer Access Token”
  4. Change the storename variable to your Store NameKheSjI4
  1. Click Save
