Here is a list of SmartConnect SmartConnect Dynamics 365/CRM Connection Errors, and how to resolve the errors. Our SmartConnect manual goes into detail about how to setup the connector, and Katie Soderberg posted a help article specifically for Dynamics 365 CRM.

1. Failed to Connect to the CRM Server: Object reference not set to an instance of an object.
         050917 1500 TechTuesday1

    1. Authentication Type is incorrect
    2. CRM Server is incorrect
    3. “Use Ssl to connect” box is checked on an Active Directory Deployment

         050917 1500 TechTuesday2

          Follow this Link for information on the CRM authentication types.

2. Failed to connect to the CRM Server : Failed to get CRM Organizations : The Caller was not authenticated by the service.

         050917 1500 TechTuesday3

    1. Incorrect Username

    050917 1500 TechTuesday4

    The Username will be an email address for online instances, but for active directory deployments it will be an employee name such as “Ethan”.

  3. Failed to connect to the CRM Server : Failed to get CRM Organizations : SOAP security negotiation with ‘http://Server/XRMServices/2011/Discovery.svc’ for target ‘http://Server/XRMServices/2011/Discovery.svc’ failed. See inner exception for more details.

    050917 1500 TechTuesday5

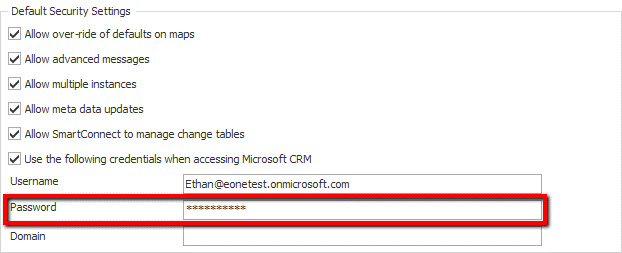

    1. Incorrect password

    050917 1500 TechTuesday6

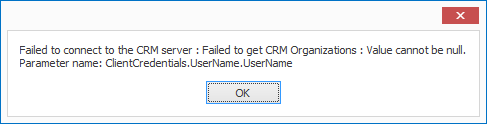

  4. Failed to connect to the CRM Server : Failed to get CRM Organizations : Value cannot be null. Parameter name: ClientCredentials.UserName.UserName

    050917 1500 TechTuesday7

    1. Check the “Use the following credentials when accessing Microsoft CRM” box

    050917 1500 TechTuesday8

    This check box is required for Online and Internet Facing Deployments.



  5. Failed to connect to the CRM Server : Failed to get CRM Organizations : Value cannot be null. Parameter name: identityProvider

    050917 1500 TechTuesday9

    1. Username email address incorrect

    050917 1500 TechTuesday10

    The Username will be an email address for online instances.



  6. Failed to connect to the CRM Server : Failed to get CRM Organizations : An unsecured or incorrectly secured fault was received from the other party. See the inner FaultException for the fault code and detail.

    050917 1500 TechTuesday11

    1. Incorrect Password

    050917 1500 TechTuesday12



  7. Click ‘Refresh’ and the Organization stays blank.

    050917 1500 TechTuesday13

    1. User is does not have a license assigned.

    Here is a Link to Microsoft’s documentation on purchasing and assigning Dynamics 365 Licenses.

  8. Failed to get CRM 2011 Organizations : Could not load file or assembly ‘Microsoft.IdentityModel, Version=3.5.0.0, Culture=neutral, PublicKeyToken=’31bf3856ad364e35′ or one of its dependencies. The system cannot find the file specified.



    050917 1500 TechTuesday14

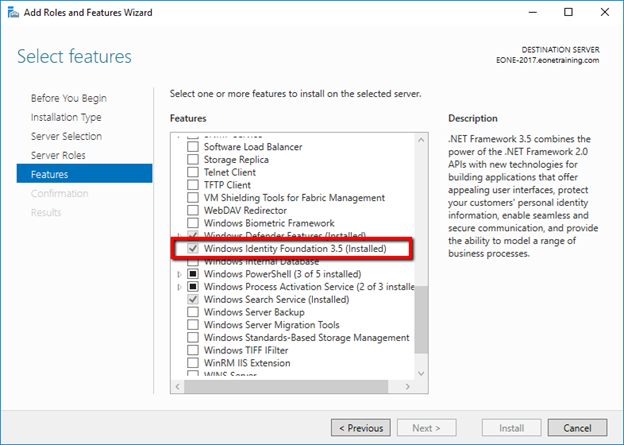

    1. Windows Identity Foundation isn’t installed

    050917 1500 TechTuesday15

    Install Windows Identity Foundation from programs and features.

  9. Failed to get CRM Organizations : An unsecured or incorrectly secured fault was received from the other party. See the inner FaultException for the fault code and detail.

        12

10. The CRM Connection has timed out at 8 hours.

This timeout issue was fixed in version 20.17.0.11. Upgrade to SmartConnect 2017 or later and the connector will refresh automatically before 8 hours.
